ACE Trucks AF1 Polished 44
€79.90
- 5/5 Trustpilot rating from 1800+ happy customers
- In stock - Warehouse/shop in Gothenburg, Sweden
- Free shipping over €99*
- Express delivery within the EU
- 30 days full return policy
- BrandAce Trucks
- Truck Size44
Description
Article no.: ATAFP54

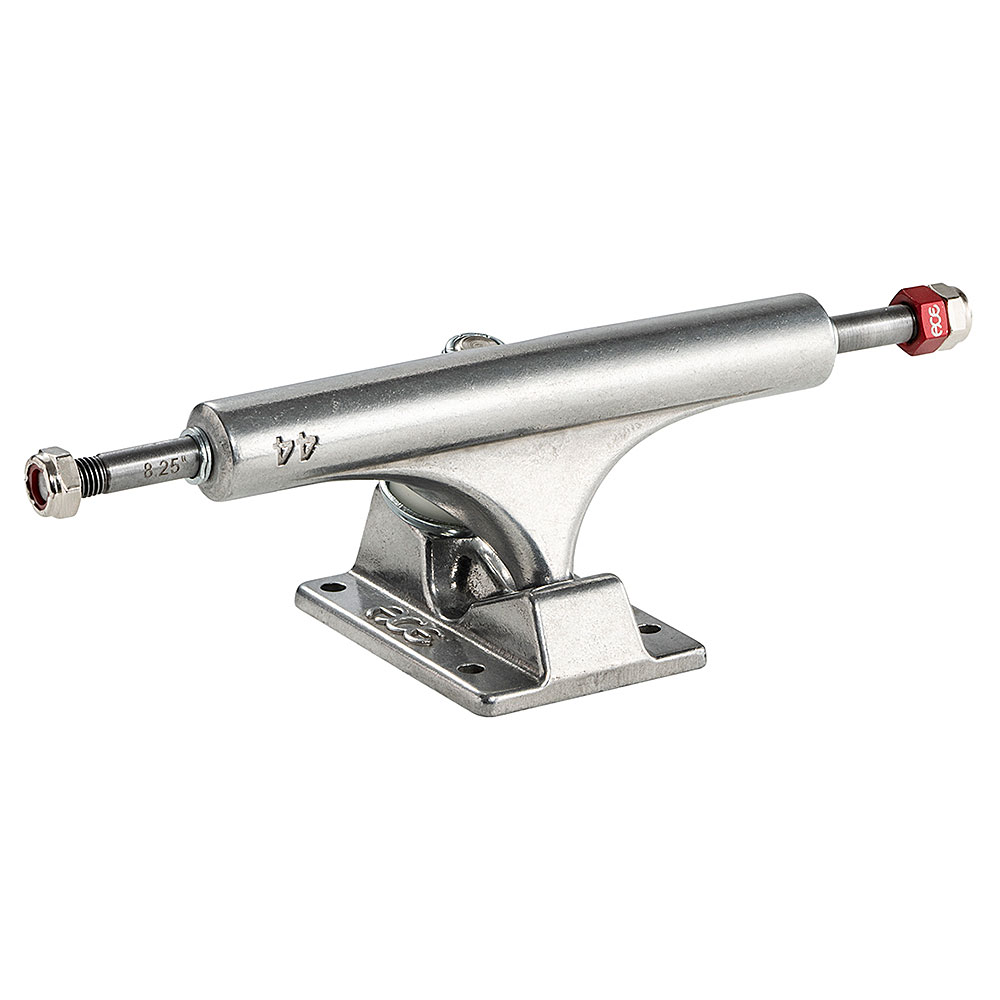

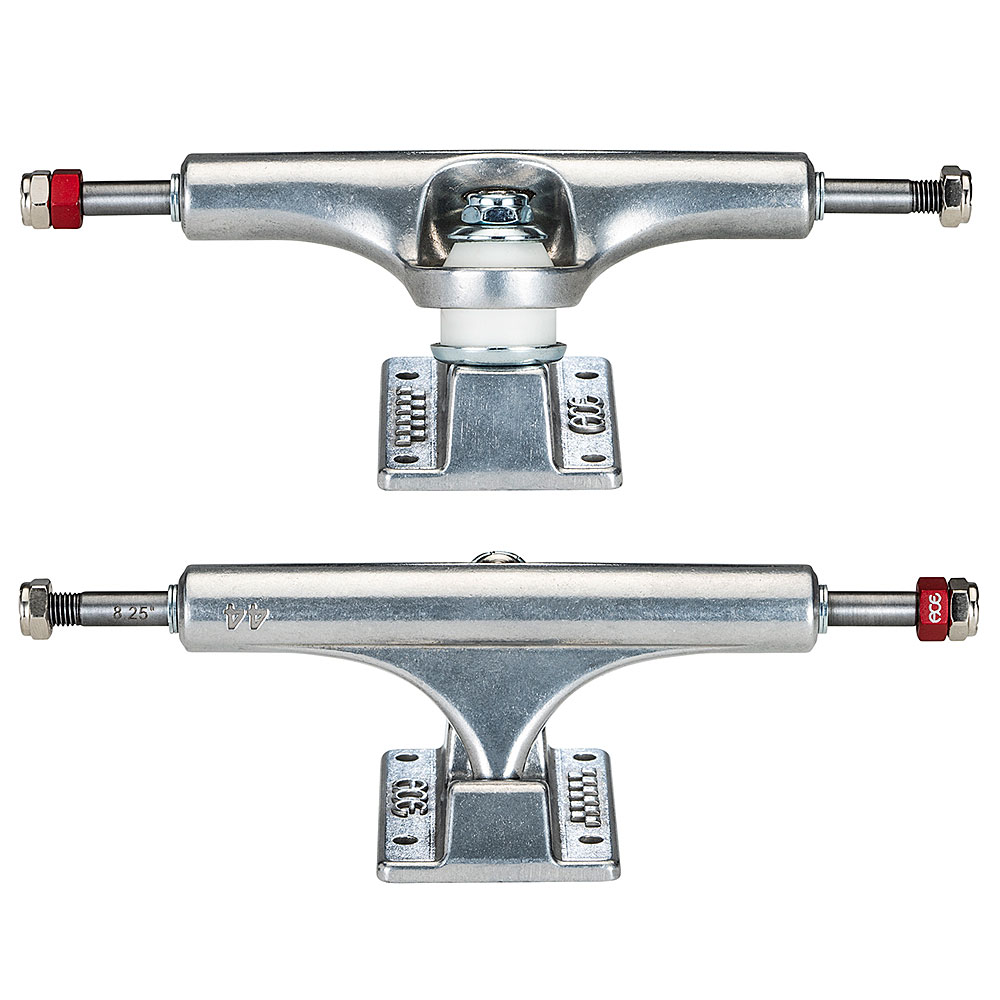

AF1 Polished 44
The all-new ACE AF1 features game-changing performance without deviating from our original Ace geometry. The AF1 is carefully manufactured using our proprietary casting process. Years in development, the ACE AF1 has a 70% increase in the aluminum’s structural integrity, making it the strongest cast truck on the market. We updated the sizing on the 44 thru 77 models for a better fit across multiple board widths.
The Ace AF1, tomorrow’s technology today!
• Axle width: 8.25” (209mm)
• Hanger width: 5.6” (143mm)
• Truck height: 2.1” (53mm)
• Fits boards: 8.125” - 8.3”
• Manufactured with high-quality AA 356.2 alloy using our own proprietary casting method
• True T6 heat-treated baseplates and hangers
• SAE 4140 steel alloy axles, oversized to eliminate bearing wobble.
• Patent pending rethreading axle nuts - no more damaged axle ends!
• Durable Hand-poured 96a urethane pivot bushings for better response.
• Refined suspension for a cleaner turn.
• Top Bushing: 12mm tall | 91a hardness
• Bottom Bushing: Bottom 14mm tall | 86a hardness
• Machine-faced hanger ends for precise bearing contact.
Ace Size Guide:
The all-new ACE AF1 features game-changing performance without deviating from our original Ace geometry. The AF1 is carefully manufactured using our proprietary casting process. Years in development, the ACE AF1 has a 70% increase in the aluminum’s structural integrity, making it the strongest cast truck on the market. We updated the sizing on the 44 thru 77 models for a better fit across multiple board widths.
The Ace AF1, tomorrow’s technology today!
• Axle width: 8.25” (209mm)
• Hanger width: 5.6” (143mm)
• Truck height: 2.1” (53mm)
• Fits boards: 8.125” - 8.3”
• Manufactured with high-quality AA 356.2 alloy using our own proprietary casting method
• True T6 heat-treated baseplates and hangers
• SAE 4140 steel alloy axles, oversized to eliminate bearing wobble.
• Patent pending rethreading axle nuts - no more damaged axle ends!
• Durable Hand-poured 96a urethane pivot bushings for better response.
• Refined suspension for a cleaner turn.
• Top Bushing: 12mm tall | 91a hardness
• Bottom Bushing: Bottom 14mm tall | 86a hardness
• Machine-faced hanger ends for precise bearing contact.
Ace Size Guide:
| SIZE | AXLE | SKATE WIDTH |
| 22 | 7.75" | 7.5"-8.0" |
| 33 | 8.0" | 7.75"-8.125" |
| 44 | 8.25" | 8.125"-8.3" |
| 55 | 8.5" | 8.3"-8.75" |
| 60 | 8.75" | 8.6"-8.8" |
| 66 | 9.0" | 8.75"-9.25" |
| 77 | 9.5" | 9.25"-9.75" |
